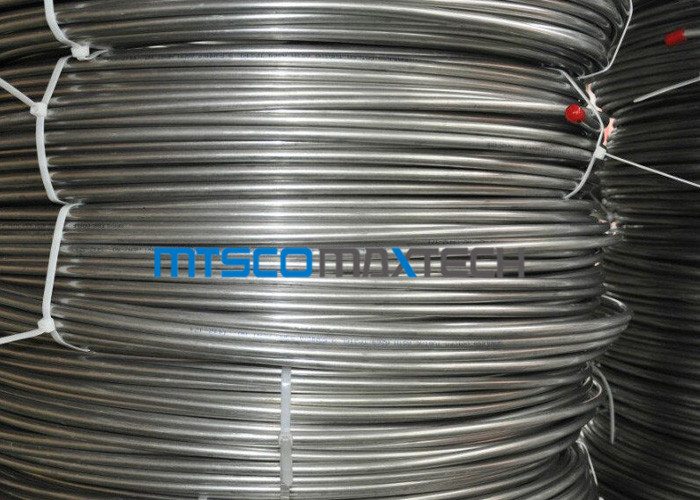

1 / 2 Inch ASTM A213 TP316 / 316L Stainless Steel Seamless Coiled Tube For Instrument
SSSCT17
Material: 304, 1.4301, X5CrNi18-10; 304H, S30415, 1.4948, S30409; 304L, 1.4306, S30403, 1.4307; 316L, 1.4401, 1.4404, 1.4435; 316Ti, S31615, 1.4571, S31635;
Get Quote![1 / 2 Inch ASTM A213 TP316 / 316L Stainless Steel Seamless Coiled Tube For Instrument, SSSCT17 1 / 2 Inch ASTM A213 TP316 / 316L Stainless Steel Seamless Coiled Tube For Instrument, SSSCT17](https://www.mtstainlesssteel.com/upload/big/1__2_Inch_ASTM_A213_TP316__316L_Stainless_Steel_Seamless_Coiled_Tube_For_Instrument_1_0_1488346953.jpg)
1 / 2 Inch ASTM A213 TP316 / 316L Stainless Steel Seamless Coiled Tube For Instrument
Where the coiled tubing used ?
1 . Control tubing in oil and gas well
2 . Instrument tubing
3 . Chemicl injection tubing line
4 . Pre-insulated tubing
5 . Electric heating or steam heating tubing line
6 . Hater tubing line
Chemical Composition :
Elements | 304L(wt%) S30403 | 304(wt%) S30400 | 316L (wt%) S31603 | 316 (wt%) S31600 |
(C) Carbon, max | 0.035 | 0.08 | 0.035 | 0.08 |
(Mn) Manganese, max | 2 | 2 | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 | 1 | 1 |
(Ni) Nickel | 8.0 - 12.0 | 8.0 - 11.0 | 10.0 - 14.0 | 10.0 - 14.0 |
(Cr) Chromium | 18.0 - 20.0 | 18.0 - 20.0 | 16.0 - 18.0 | 16.0 - 18.0 |
(Mo) Molybdenum | N/A | N/A | 2.0 - 3.0 | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. | Bal. | Bal. |
(Cu) Copper | N/A | N/A | N/A | N/A |
(N) Nitrogen | N/A | N/A | N/A | N/A |
Stanard Wire Gauge ( Fomerly Imperial Wire Gauge ) SWG | |||||
SWG | Wall Thickness | SWG | Wall Thickness | ||
0 | 0.324 | 8.23 | 21 | 0.032 | 0.81 |
1 | 0.3 | 7.62 | 22 | 0.028 | 0.71 |
2 | 0.276 | 7.01 | 23 | 0.024 | 0.61 |
3 | 0.252 | 6.4 | 24 | 0.022 | 0.56 |
4 | 0.232 | 5.89 | 25 | 0.02 | 0.51 |
5 | 0.212 | 5.38 | 26 | 0.018 | 0.46 |
6 | 0.192 | 4.88 | 27 | 0.0164 | 0.42 |
7 | 0.176 | 4.47 | 28 | 0.0148 | 0.38 |
8 | 0.16 | 4.06 | 29 | 0.0136 | 0.35 |
9 | 0.144 | 3.66 | 30 | 0.0124 | 0.31 |
10 | 0.128 | 3.25 | 31 | 0.0116 | 0.29 |
11 | 0.116 | 2.95 | 32 | 0.0108 | 0.27 |
12 | 0.104 | 2.64 | 33 | 0.01 | 0.25 |
13 | 0.092 | 2.34 | 34 | 0.0092 | 0.23 |
14 | 0.08 | 2.03 | 35 | 0.0084 | 0.21 |
15 | 0.072 | 1.83 | 36 | 0.0076 | 0.19 |
16 | 0.064 | 1.63 | 37 | 0.0068 | 0.17 |
17 | 0.056 | 1.42 | 38 | 0.006 | 0.15 |
18 | 0.048 | 1.22 | 39 | 0.0052 | 0.13 |
19 | 0.04 | 1.02 | 40 | 0.0048 | 0.12 |
20 | 0.036 | 0.91 |
VIP SERVICE
VR (Virtual) Mill Introduction
Professional Remote Technical Guidanceion
Accept Third-party Inspection
Door to Door Shipment
